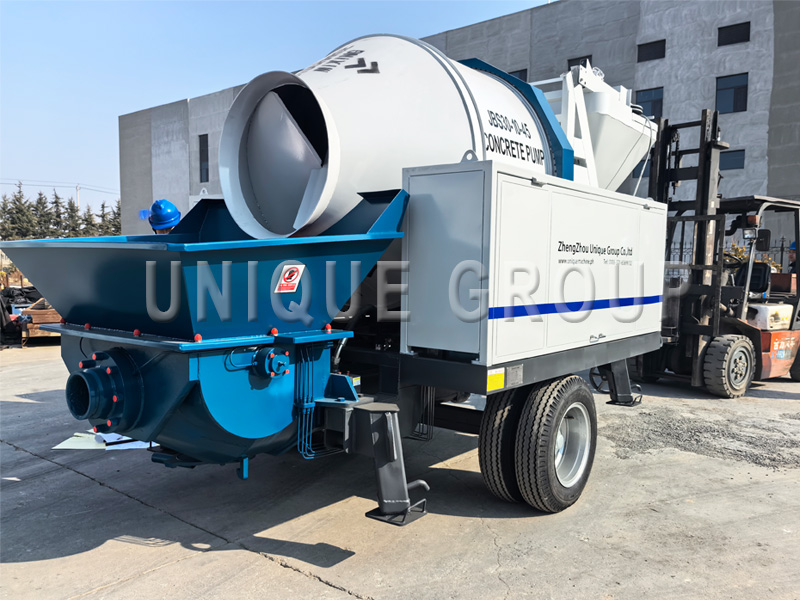

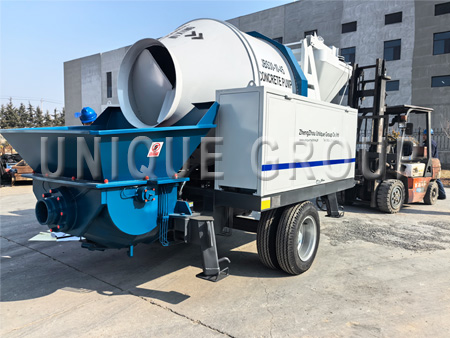

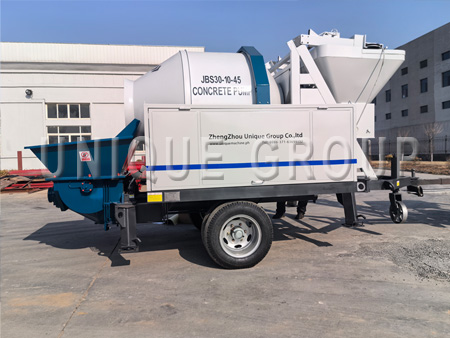

JBS30 Concrete Mixer Pump
Name Concrete Mixer with Pump
Type: Diesel engine / Electric Motor
Capacity: 15m3/h, 30m3/h 40m3/h
Features and Benefits:
JBS30 Concrete mixer with pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water
conservancy and hydropower engineering, geological hazards slope treatment works.
The characteristic of concrete mixer pump:
1. Mixing and pumping of the perfect combination, to save weight and transportation space frame.
2. high work efficiency.
3. Save labor costs, reduce labor intensity.
4. Smaller power, consider the carrying capacity of rural power grid.
5. Simple operation, easy to use.
6. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.
7. Long distance delivery.
|
Items
|
JBS30
|
JBS40
|
JBS30
|
JBS40
|
|
|
Transfer Pump
|
Max. theoretical output
|
30m3/h
|
40m3/h
|
30m3/h
|
40m3/h
|
|
Theo. pumping pressure
|
9Mpa
|
10Mpa
|
10Mpa
|
10Mpa
|
|
|
Max. conveyor height
|
140m
|
160m
|
140m
|
160m
|
|
|
Max. distance
|
350m
|
500m
|
350m
|
500m
|
|
|
Distribution cylinder
|
The S tube placed valve
|
||||
|
Power type
|
Motor
|
Motor
|
Diesel
|
Diesel
|
|
|
Motor power
|
37kw
|
45kw
|
62kw
|
82kw
|
|
|
Main oil pump capacity
|
71ml/min
|
112ml/min
|
71ml/min
|
112ml/min
|
|
|
Hopper capacity
|
550L
|
550L
|
550L
|
550L
|
|
|
Max. aggregate diameter
|
20/30mm
|
30/40mm
|
20/30mm
|
30/40mm
|
|
|
|
Loading capacity
|
560L
|
720L
|
560L
|
720L
|
|
Unloading capacity
|
350L
|
450L
|
350L
|
450L
|
|
|
Mixing motor
|
5.5x2kw
|
5.5x2kw
|
/
|
/
|
|
|
Hoisting motor
|
4.5kw
|
4.5kw
|
/
|
/
|
|
|
Total
|
Dimension
|
4270x2350
x2980mm
|
4800x2200
x2800mm
|
4800x2200
x2800mm
|
6000x2200
x2800mm
|
|
Weight
|
3300kg
|
5000kg
|
5500kg
|
6000kg
|
|
