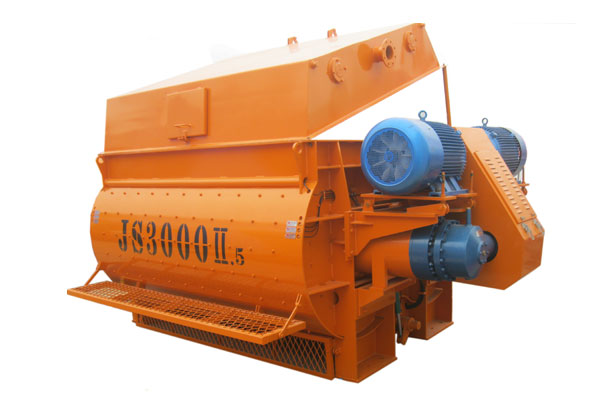

JS3000 Concrete Mixer

This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.


Features and Benefits:

Features of JS3000 Concrete Mixers:

1.This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Auto-lubrication system ensures the mixing system can operate continually for a long time.
4. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.

Application of JS3000 Concrete Mixers:
This concrete mixer is ideal for mixing stiff-consistency concrete, semi-stiff-consistency concrete, plastic concrete and other kinds of concrete in different proportional ratios.

Technical Specification of JS3000 Concrete Mixers:

Model: JS3000
Discharge volume: 3000L
Charging volume: 4800L
Theoretical capacity: ≥150m3
Aggregate sizes: ≤60/80m
Working circle: 60s
Mixing blade
Speed: 21.85r/min
Quantity: 2×10
Mixing motor
Model: Y280M-6
Power: 2×55 kw
Weight: 11450kg
Dimensions (L x W x H): 4220x2620x1910 mm
