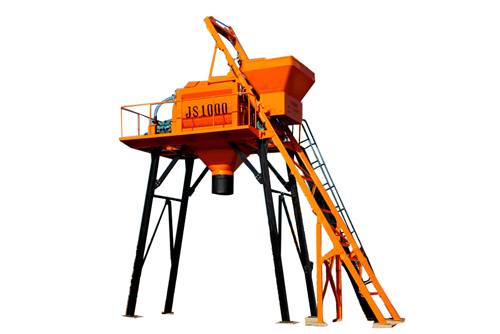

JS1000 Concrete Mixer
JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.
Features and Benefits:
Features of JS1000 Concrete Mixers:
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.

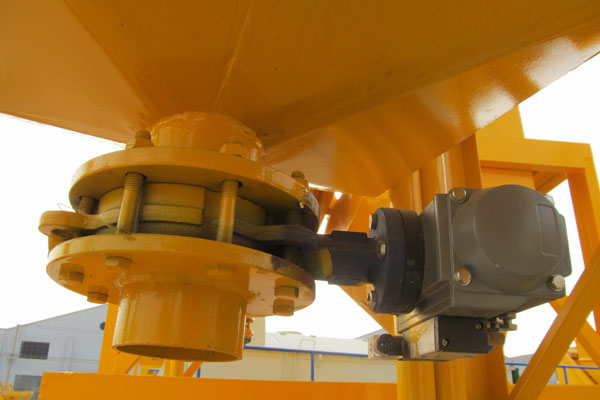

2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Application of JS1000 Concrete Mixers:
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
Technical Specification of JS1000 Concrete Mixers:
Model: JS1000
Discharge volume: 1000L
Charging volume: 1600L
Theoretical capacity: ≥50m3
Aggregate sizes: ≤60/80mm
Working circle: 60s
Mixing blade
Speed: 25.5r/min
Quantity: 2×8

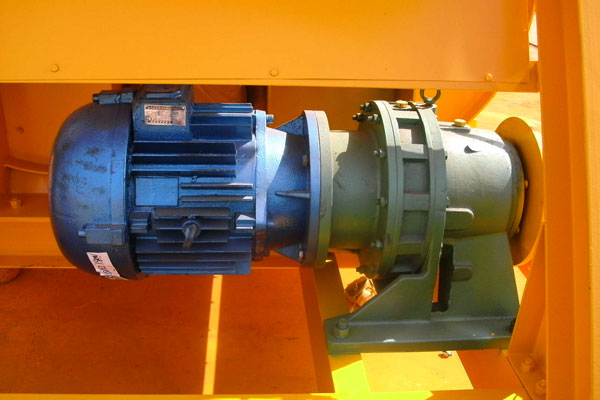

Mixing motor
Model: Y225S-4
Power: 37 kw
Lifting motor
Model: YEZ160L-4
Power: 11 kw
Pump motor
Model: KQW65-100
Power: 3 kw
Weight: 9880kg
Dimensions (L x W x H): 4640x2250x2250 mm
