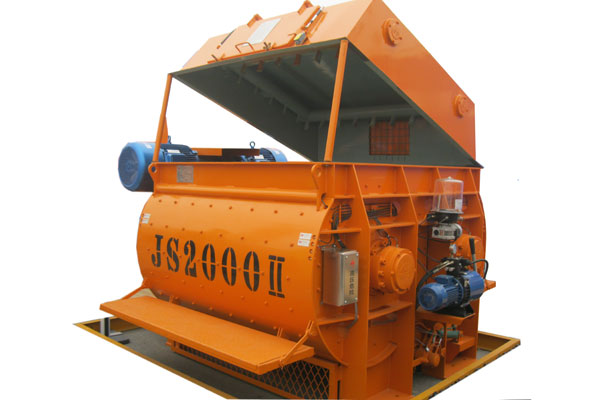

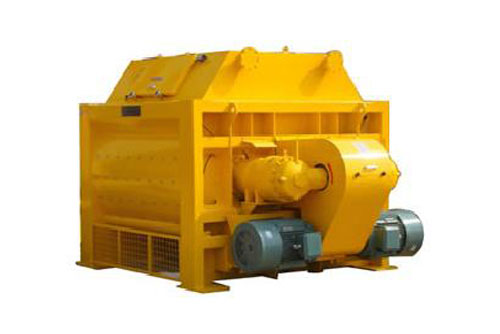

JS2000 Concrete Mixer
Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.This concrete mixer is ideal for mixing stiff-consistency concrete, semi-stiff-consistency concrete, plastic concrete and other kinds of concrete in different proportional ratios.
Features and Benefits:
Features of JS2000 Concrete Mixers:
1.This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Auto-lubrication system ensures the mixing system can operate continually for a long time.
4. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.
Application of JS2000 Concrete Mixers:
This concrete mixer is ideal for mixing stiff-consistency concrete, semi-stiff-consistency concrete, plastic concrete and other kinds of concrete in different proportional ratios.
Technical Specification of JS2000Concrete Mixers:
Model: JS2000
Discharge volume: 2000L
Charging volume: 3200L
Theoretical capacity: ≥100m3
Aggregate sizes: ≤60/80mm
Working circle: 60s
Mixing blade
Speed: 23.1r/min
Quantity: 2×9
Mixing motor
Model: Y25M-4
Power: 2×37 kw
Weight: 9200kg
Dimensions (L x W x H): 3810x2480x1710 mm
