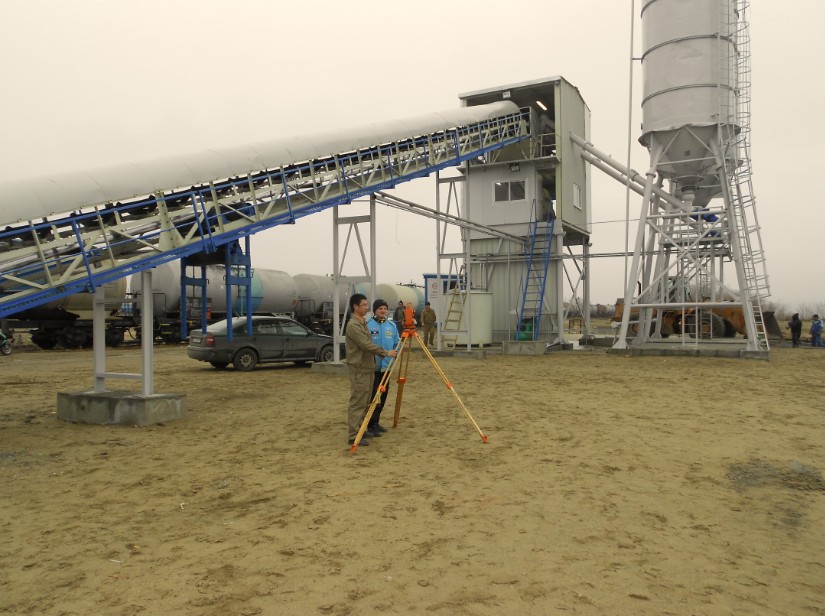

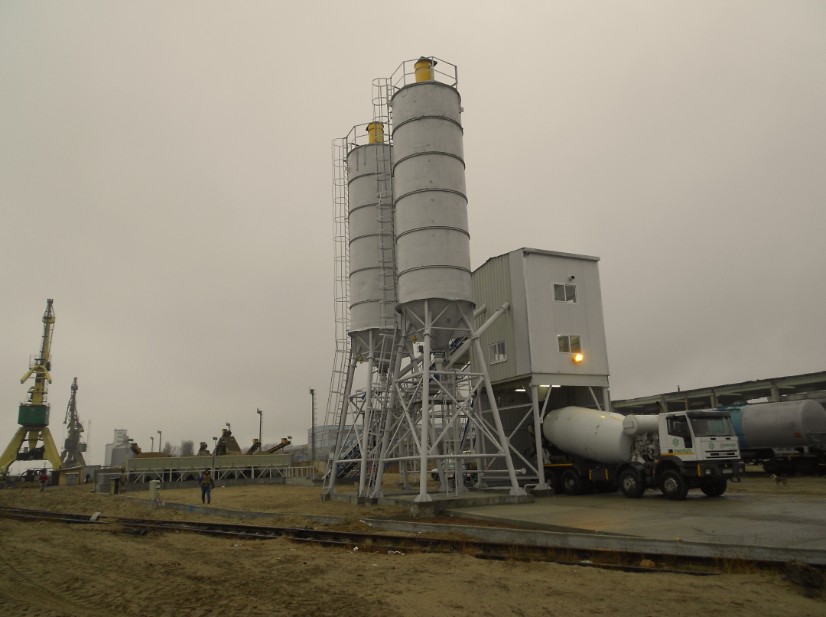

sales@unique-cons.comConcrete Mixing Plant HZS60 in Romania
Technical Parameters of HZS60 Concrete Mixing Plant:
Capacity: 60 m3/h
Mixing Time: 60S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 80KW
Total Weight: 50Ton
Total Dimensions: 25000×10000×19400 mm
Mixing Time: 60S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 80KW
Total Weight: 50Ton
Total Dimensions: 25000×10000×19400 mm
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
Volume: 1600L
Capacity: 1000L
Mixing blade: 2×8 pcs
Mixing Speed: 25.5 r.min
Mixer Motor: 37kw
Weight: 9880kg
Dimensions: 4640×2250×2250mm
2. AGGREGATE SYSTEM
2.1 Aggregate batcher: PLD2400
Volume: 4×12 m3
Capacity: 144 m3/h
Power: 11kw
Weight: 7610 kg
Dimension: 10120×3320×3820mm
2.2 Aggregate Belt Conveyor 1 unit
Width: 800 mm
Speed: 1.6 m/s
Power of Motor: 11kw
3.CEMENT SYSTEM (OPTIONAL)
3.CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo 2units
Capacity: 100t×2=100t
Silo Diameter: Φ3000
3.2 Cement Screw Feeder 2units
Diameter: Φ219mm
Length: 9m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 3kw
5.WATER SYSTEM
Motor Power: 3kw
Butterfly Valve: Φ150 mm
Capacity: 80m3/h
6.AIR SYSTEM
Air Compressor 1unit
Power: 7.5 kw
Pressure: 1.0 Mpa
Air flew: 1.2 m3/min
7. WEIGHING SYSTEM
7.1 Aggregate Weighing 1unit
Weighing Capacity: 3000kg
Precision: ±1%
7.2 Cement Weighing 1unit
Weighing Capacity: 600kg
Precision: ±1%
7.3 Water Weighing 1unit
Weighing Capacity: 250 kg
Precision: ±1%
7.4 Additive Weighing: 1unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM
PLC command and control operation.
PLC command and control operation.
Main electrical components: SCHNEIDER or SIMENSE
17’’ colorful computer
Manuel and Auto Control is freely changeable.
