JS4000 Concrete Mixer

JS2000-4000 electric concrete mixer is an important concrete mixing machine in our company. Multi-stirring piece design and unique mixing angle make the mixing faster and more uniform, which can improve the production efficiency. Water is injected into the concrete mixer, which accelerates the mixing of water and mix materials as well as thoroughly cleans it.


Features and Benefits:

Features of JS4000 Concrete Mixers:

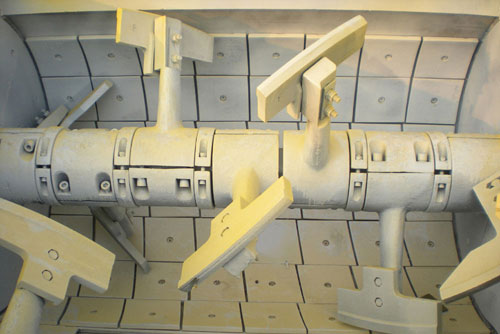

1.This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.

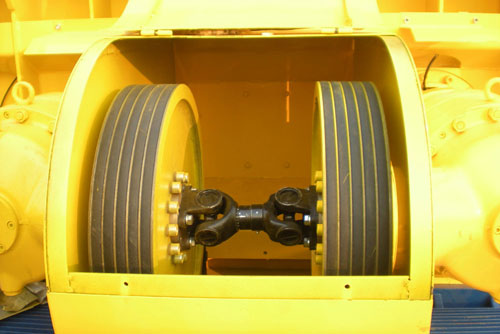

2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.

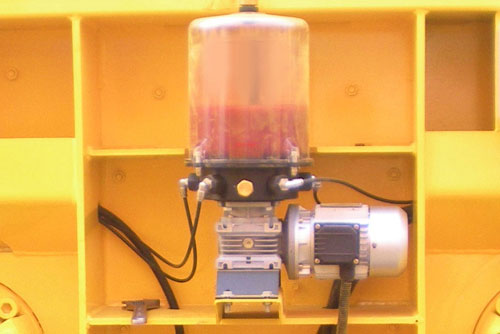

3. Auto-lubrication system ensures the mixing system can operate continually for a long time.
4. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.

Application of JS4000 Concrete Mixers:
This concrete mixer is ideal for mixing stiff-consistency concrete, semi-stiff-consistency concrete, plastic concrete and other kinds of concrete in different proportional ratios.

Technical Specification of JS4000 Concrete Mixers:
Model: JS4000
Discharge volume: 4000L
Charging volume: 6400L
Theoretical capacity: ≥200m3
Aggregate sizes: ≤60/80mm
Working circle: 60s
Mixing blade
Speed: 19r/min
Quantity: 2×10
Mixing motor
Model: Y315S-6
Power: 2×75 kw
Weight: 19000kg
Dimensions (L x W x H): 4450x3050x 2380 mm
