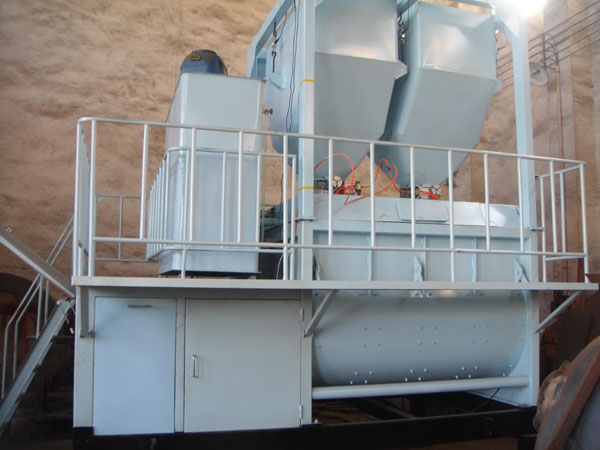

JSP4000 Foam Concrete Machine

This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor. It is suggested that you use a high capacity mixer of over 500 liters. A work force of 5 to 7 employees would keep this factory running at full capacity.
Features and Benefits:

 Optional Parts:

1. Conveying pump……Model HBT30
2. Mould: we can manufacture the a certain special mould for you accordingly.
3. Foaming agent.

Advantages Of JS Series Foam Concrete Making Machine:

1. Perfect humanization Electrical control system

Siemens PLC with Visualization touch screen provide you a Child operation machine.

2. Environment protection.

3. Hydraulic System. Make in China, world Quality, and we can provide you the hydraulic motor as you request .

4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;

5. Various product scope:
It produces various bricks or wall panel, hollow blocks, perforated bricks, and standard bricks etc.


Model JSP4000
Input volume 4000L
Discharge volume 2500L
Productivity 20-30m3/h
Main shaft revolution 30r/min
Mixing motor 18.5kw
Air compressor 4kw
Vibrate motor 0.4kw
Foaming Machine 3kw
Water pump motor 1.1kw
Overall dimension 3750*2250*2920mm
Total weight 4800kg
