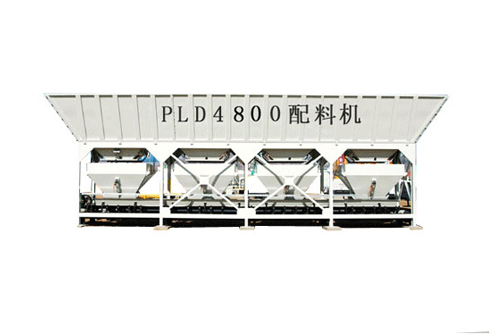

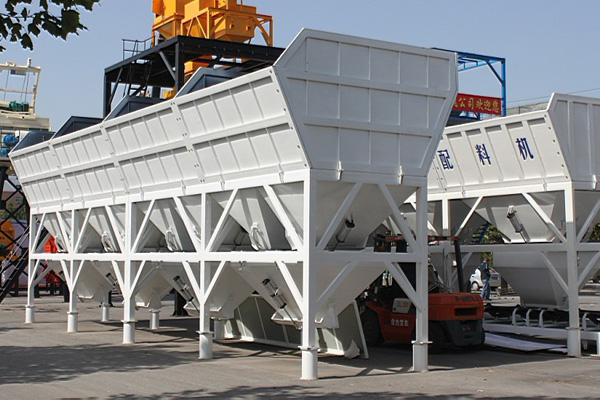

PLD2400-4800
This series batching machine adopted the independent weighing, each type of aggregate have one independent scale and the weighing accuracy is ±2%. This series batching machine can be equipped with an automatic control or wired remote for loading aggregate into skip hopper.
Features and Benefits:
Advantages Of PLD Series Aggregate batcher Machine:
1. Perfect humanization Electrical control system
Siemens PLC or remote control operation system provide you a accredited operation machine.
2. Load Cell :
It guarantees the precise of the aggregate and protects the products from transfiguration.
3. Discharging System. Make in China, world Quality, and we can provide you the rubber belt as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
PLD2400-4 Model Specification:
| Item | Unit | PLD 2400-3 | PLD 3200-4 | PLD 4800-4 |
| Scale hopper volume | Liter | 2400×3 | 3200×4 | 4800×4 |
| Storage hopper volume | m3 | 3×12 | 4×20 | 4×25 |
| Productivity | m3/h | ≥120 | ≥160 | ≥280 |
| Batching precision | ±2% | ±2% | ±2% | |
| Max weighting | kg | 4000 | 5000 | 8000 |
| Aggregate number | 3 | 4 | 4 | |
| Feeding height | mm | 3200 | 3500 | 3800 |
| General power | kW | 11 | 11 | 15 |
| Weight | kg | 10500 | 12600 | 13600 |
| Dimension (L*W*H) | mm | 9820×2840×3900 | 13500×2900×4450 | 15520×3900×5090 |
| Division value checking | kg | 2.0 | 2.0 | 2.0 |
| Optional Aggregate Belt | Fixed or movable aggregate feeding belt | |||
