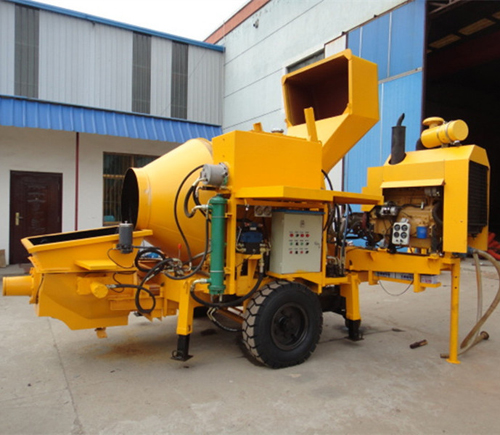

Performance and Advantages of the UNQIUE Concrete Mixing & Pumping machine

    1, specially designed for hydraulic tipping loading hopper and non accumulator hydraulic system.
    2, Only a diesel engine to provide the power to drive the tipping loading hopper cylinder, mixing drum, concrete pump stroke cylinders, swing cylinders, concrete pump agitator.
    3, there is the isolation chamber sealing structure in stroke cylinder even of the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, cannot enter enter the oil tank.
    4, The electromagnetic clutch and timer control water system, automatic water timer auto-control water supply.
    5, The high Mid tank layout, the center of the gravity in the middle of the two wheels.
    6, the median tank layout, oil flow into the hydraulic pump itself, to avoid the lack of oil to damage oil pump, high reliability.
    7, The mixer and concrete pump can be easily separated, can realize the independent use and combined use, there are 2 locations, work alone and combination, and it is convenient for the replacement of the concrete piston. The mixer drum is not the barrier located above the concrete pump stroke cylinder part of the inspection, maintenance, it is easy to be maintenance bu pull the pump until out from mixer.
