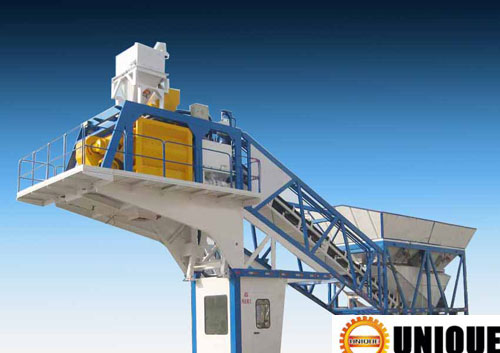

Mobile Concrete Plant Station Structure

1.Mobile concrete plant host Chassis: cantilever-shaped mixing console chassis, chassis contains a trailer truck kingpins parking legs, placed on the chassis mixer, cement and water admixture metering said, the surrounding attached to patrol walkway, railings.
2.Control room: control room at the bottom of the host chassis, built mixing station automatic control system, the control system with the same stationary concrete mixing plants when the working status of the control room as a whole station before support points, transitions transportation control room away Favorite the stent empty, all control lines without disassembly.
3.Aggregate dosing: This system is located in the entire station backend the upper aggregate (sand, stone) hopper, the hopper can be divided into 2 or 4 grid, and set heightening the board to increase the capacity of the material storage pneumatic in turn open the door operation, aggregate measurement of a variety of materials accumulated measurement methods. Equipped with at the bottom of the the framework legs when walking after the bridge and work.
4.Belt conveyor rack: The rack is connected truss structure of the framework of the host chassis and aggregates ingredients pieces, belt rack inside the main frame, belt rack, ingredients framework together as a whole constitute the main structure of the entire mobile concrete plant.
5. Peripheral Component: cement silo and screw conveyor, peripheral component regardless of work or transportation are integral parts, without disassembling the overall transport, disassembly.
