What is a concrete batching plant?

A concrete batching plant is a facility that combines various ingredients to produce concrete in a controlled and efficient manner. It is widely used in the construction industry for projects of all sizes. The following is a detailed introduction:

Components

Storage Silos: These are used to store cement, fly ash and other powdery materials. They are usually made of steel or concrete and come in different sizes to meet the production needs.

Aggregate Bins: Aggregate bins are used to store coarse and fine aggregates, such as gravel and sand. They are often equipped with discharge gates to control the amount of aggregate released.

Weighing System: The weighing system is a crucial part of the concrete batching plant. It accurately measures the amounts of cement, aggregates, water and additives to ensure the correct mix ratio of the concrete.

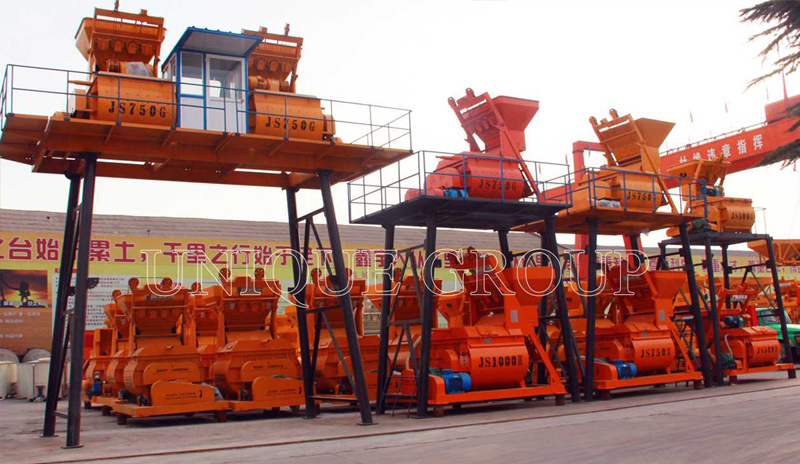

Mixing Unit: The mixing unit is where the actual mixing of the ingredients takes place. There are two main types of mixers: drum mixers and pan mixers. Drum mixers are commonly used for general-purpose concrete production, while pan mixers are more suitable for high-quality and high-performance concrete.

Control System: The control system monitors and manages the entire production process. It allows operators to set the mix ratios, control the operation of each component, and ensure the quality and consistency of the concrete produced.

Types

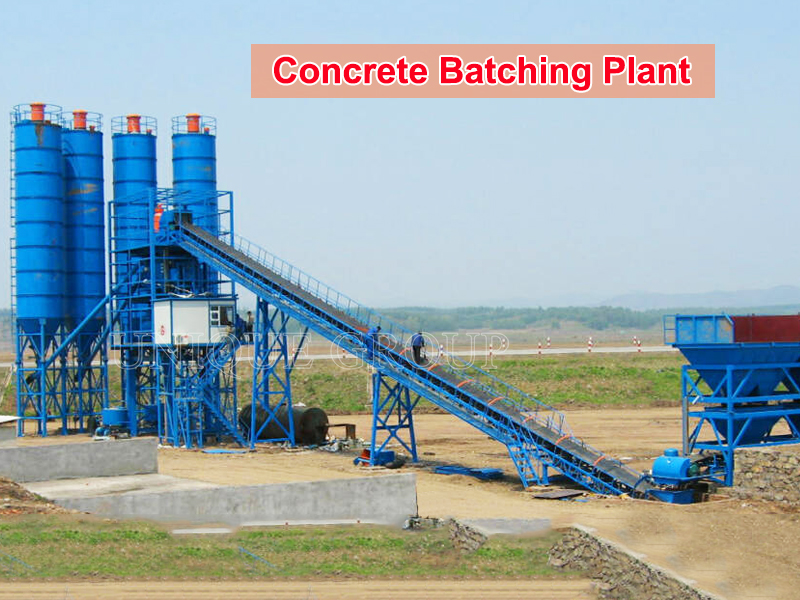

Stationary Concrete Batching Plants: These are fixed installations that are often used for large-scale construction projects or in locations where long-term and high-volume concrete production is required. They have a relatively high production capacity and can be customized to meet specific project requirements.

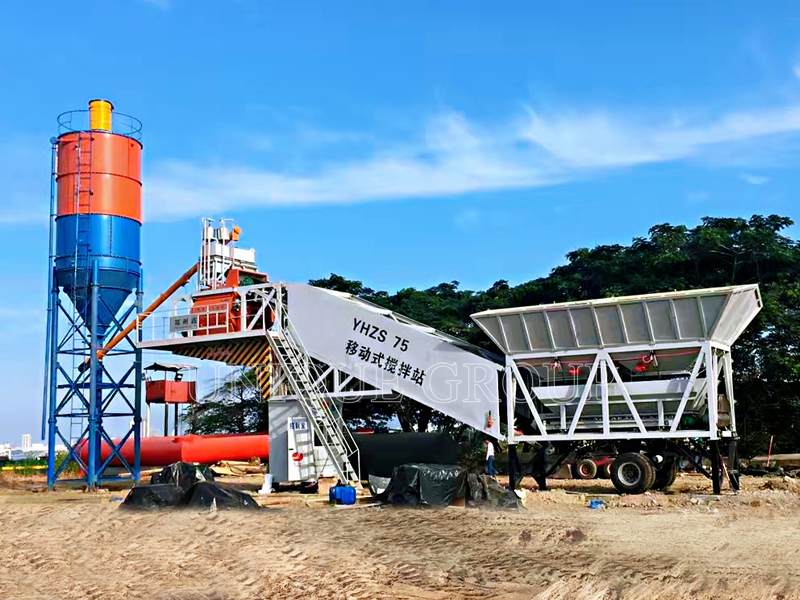

Mobile Concrete Batching Plants: Mobile batching plants are designed to be easily transported and set up at different construction sites. They are suitable for small to medium-sized projects or projects that require concrete production in multiple locations.

Advantages

Consistent Quality: Concrete batching plants ensure that the concrete produced has a consistent mix ratio and quality, which is crucial for the strength and durability of the concrete structures.

High Production Efficiency: With the use of advanced equipment and automated control systems, batching plants can produce a large amount of concrete in a short period, improving the construction efficiency.

Cost-Effective: Although the initial investment in setting up a batching plant is relatively high, in the long run, it can save costs by reducing material waste and labor costs compared to traditional on-site mixing methods.

Versatility: Batching plants can produce different types of concrete, such as ordinary concrete, high-strength concrete, and special concrete for specific applications, by adjusting the mix ratio and ingredients.

What is the process flow of concrete batching plant?

The process flow of a concrete batching plant typically involves the following sequential steps to ensure precise mixing and efficient production:

1. Material Storage

Aggregate Bins: Coarse aggregates (gravel, crushed stone) and fine aggregates (sand) are stored in separate bins with automated discharge systems.

Cement Silos: Cement and supplementary materials (fly ash, slag) are stored in vertical silos to prevent moisture contamination.

Liquid Tanks: Water and liquid additives (e.g., accelerators, retarders) are stored in dedicated tanks.

2. Batching (Material Weighing)

Aggregate Batching: Aggregates are measured by weight using belt conveyors or skip hoists connected to digital scales.

Cement Batching: Powdered materials are pneumatically conveyed from silos to weigh hoppers.

Liquid Batching: Water and additives are metered via flow meters or load cells.

Precision Control: Modern plants use automated systems (PLC or computer software) to ensure exact mix ratios.

3. Mixing

Mixer Types:

Drum Mixers: Rotating drums with blades for general concrete.

Pan Mixers: High-shear mixers for specialty concretes (e.g., high-strength, self-compacting).

Sequence: Aggregates, cement, and water/additives are loaded into the mixer sequentially. Mixing time typically ranges from 30 seconds to 2 minutes.

4. Quality Control

Slump Test: Conducted to check concrete consistency.

Temperature Monitoring: Ensured for hot/cold weather concreting.

Admixture Adjustments: Made in real-time if deviations occur.

5. Discharge and Transportation

Direct Loading: Fresh concrete is discharged into transit mixers (trucks with rotating drums) for delivery to construction sites.

On-Site Delivery: Some plants use belt conveyors or pumps for direct placement in large projects.

6. Cleaning and Maintenance

Mixer Cleaning: Regularly flushed to prevent concrete buildup.

System Checks: Filters, sensors, and conveyor belts are inspected for wear.

Key Flow Optimization

Automation: Reduces manual errors and speeds up production.

Recycling: Water and leftover concrete are often recycled to minimize waste.

Flexibility: Concrete Plants can switch between mix designs (e.g., C25, C30) by adjusting batching parameters.

Let me know if you need details on specific components or variations between stationary/mobile plants!
